低噪声变压器风扇

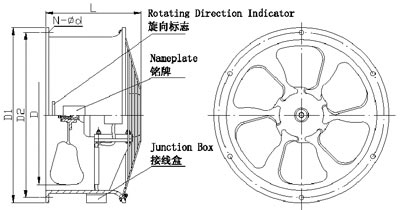

详细信息 圆筒法兰式

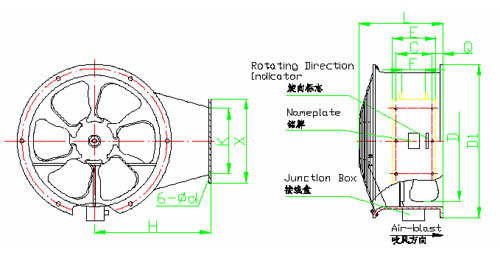

| 尺寸size 型号 type D | D1 | D2 | N-φd | L | DBF-4Q/DBF-4H | 410 | 500 | 460 | 4-φ15 | 320 | DBF-5Q/DBF-5H | 500 | 590 | 560 | 4-φ15 | 325 | DBF-6.3Q/DBF-6.3H | 630 | 730 | 690 | 4-φ15 | 380 | DBF-7Q/DBF-7H | 700 | 800 | 760 | 4-φ19 | 400 | DBF-7.1Q/DBF-7.1H | 710 | 810 | 770 | 4-φ19 | 400 | DBF-7.3Q/DBF-7.3H | 730 | 840 | 800 | 4-φ19 | 400 | DBF-8Q/DBF-8H | 800 | 900 | 860 | 4-φ19 | 400/440 | DBF-9Q/DBF-9H | 900 | 1000 | 960 | 4-φ19 | 450 | DBF-10Q/DBF-10H | 1000 | 1100 | 1060 | 4-φ19 | 460 | DBF-11Q/DBF-11H | 1100 | 1200 | 1160 | 4-φ20 | 460 | DBF-12.5Q/DBF-12.5H | 1250 | 1350 | 1310 | 12-φ12 | 520 | 圆筒底座式
| 尺寸size 型号 type | D | D1 | X | K | H | C | Q | d | L | E | F | DBF-5Q/DBF-5H | 500 | 600 | 400 | 300 | 340 | 180 | 40 | φ15 | 325 | 280 | 120 | DBF-6.3Q/DBF-6.3H | 630 | 730 | 500 | 400 | 440 | 180 | 40 | φ19 | 380 | 280 | 120 | DBF-7Q/DBF-7H | 700 | 790 | 500 | 400 | 490 | 200 | 40 | φ19 | 380 | 280 | 120 | DBF-7.1Q/DBF-7.1H | 710 | 800 | 500 | 400 | 490 | 200 | 40 | φ19 | 380 | 280 | 120 | DBF-7.3Q/DBF-7.3H | 730 | 830 | 500 | 400 | 550 | 200 | 40 | φ19 | 380 | 280 | 120 | DBF-8Q/DBF-8H | 800 | 900 | 500 | 400 | 550 | 200 | 40 | φ19 | 380/420 | 280 | 120 | DBF-9Q/DBF-9H | 900 | 1000 | 500 | 400 | 610 | 200 | 40 | φ19 | 420 | 280 | 120 共0条 相关评论 |
